| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXP-8027S-D1215L65 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag or EPE/inner box/master carton(safe export packaging) or others |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 806～960 And 1710～2700 | Polarization: | ±45º |
|---|---|---|---|
| Gain（dBi）: | 12/15 | Lightning Protection: | DC Ground |
| Input Connector Type: | 2*N Female | Mounting Hardware（mm）: | ￠35～￠90 |
| High Light: | wireless wlan antenna,wireless antenna,lte antenna |
||

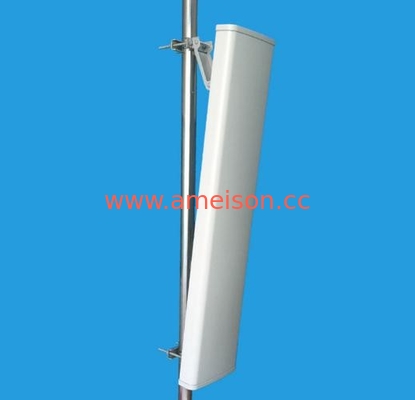

806-2700MHz 12/15dbi X Polarized wideband 3G 4G LTE Outdoor Directional Base Station panel Antenna
Feature:
High gain
Full day working
Optimized dimension
Dual Polarization
Application:
CDMA/GSM/PCS/3G/WLAN/LTE system
Wireless communication and data transmission system
|
AMXP-8027S-D1215L65 Electrical Specifications |
|||
| Frequency range | 806～960 | 1710～2200 | 2200～2700 |
| Polarization | ±45º | ||
| Gain(dBi) | 12 | 15 | 15 |
| Half-power beam width(0°) | H:65 V:30 | H:65 V:15 | H:65 V:14 |
| Front-to-back ratio(dB) | ≥25 | ≥25 | |
| Input Impedance(Ω) | 50 | ||
| Isolation between ports | ≥28dB | ||
| Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º | ||
| Sidelobe suppression for first sidelobe above horizon | 15 dB | ||
| VSWR | ≤1.5 | ≤1.5 | |
| Maximum input power(W) | 400 | 200 | |
| Lightning protection | DC Ground | ||
| Mechanical Specifications | |||
| Input connector type | N Female | ||
| Dimensions-mm (Height/Width/Depth) | 1200*280*80 | ||
| Packing size(mm) | 1250*320*160 | ||
| Antenna weight (kg) | 8 | ||
| Radome material | UPVC | ||
| Radome color | Gray | ||
| Mechanical tilt(°) | 0～10 | ||
| Operating temperature(°c) | -40～60 | ||
| Rated Wind Velocity(m/s) | 60 | ||
| Mounting hardware(mm) | ￠35～￠90 | ||
