| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXW-8025-10 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | bubble PP bag or EPE/inner box/master carton(safe export packaging) or others |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 806～960/1710～2500 | Bandwidth（MHz）: | 154/790 |
|---|---|---|---|
| Gain（dBi）: | 7/10 | VSWR: | ≤1.5 |
| Polarization: | Vertical | Lightning Protection: | DC Ground |
| Input Connector Type: | N Female Or Requested |

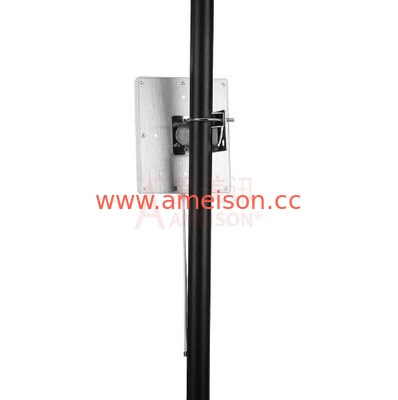

806 - 2500MHz 10dBi Indoor or outdoor 3G 4G LTE Directional Panel antenna
Feature:
High gain,strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
CDMA800/GSM900/3G/4G/LTE/WLAN system
|
AMXW-8025-10 Electrical Specifications |
|
| Frequency range(MHz) | 806～960/1710～2500 |
| Bandwidth(MHz) | 154/790 |
| Gain(dBi) | 7/10 |
| Half-power beam width(°) | H:70/60 V:55/45 |
| VSWR | ≤1.5 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical |
| Maximum input power(W) | 50 |
| Lightning protection | DC Ground |
| Cable length | 30cm |
| Input connector type | N Female or Requested |
| Mechanical Specifications | |
| Dimensions-mm (Height/Width/Depth) | 210*180*45 |
| Antenna weight(kg) | 0.57 |
| Operating temperature(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Radome material | ABS |
| Radome color | white |
| Mounting hardware(mm) | ￠35-￠50 |
