Place of Origin: | China |
Brand Name: | AMEISON |
Certification: | ISO 9001: 2008 |
Model Number: | AMXF-7027-8 |
Minimum Order Quantity: | 100 |
---|---|
Price: | EXW Price |
Packaging Details: | bubble PP bag or EPE/inner box/master carton(safe export packaging) or others |
Delivery Time: | 10-20 working days |
Payment Terms: | TT,Paypal,Western Union |
Supply Ability: | 500,000 Pieces per Month |
Frequency Range(MHz): | 698-960/1710-2700 | Bandwidth(MHz): | 262/990 |
---|---|---|---|
Gain(dBi): | 8 | VSWR: | ≤2.5/1.5 |
Polarization: | Vertical | Lightning Protection: | DC Ground |
Input Connector Type: | SMA Male Or Requested | Name: | 4G LTE Omni Antenna |

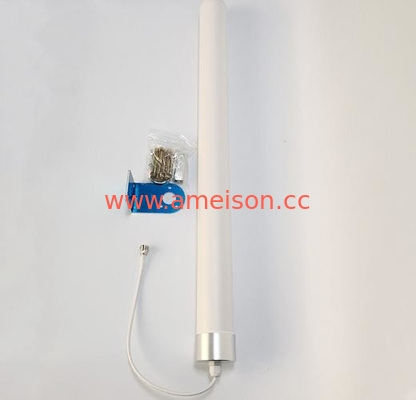

698 - 2700 MHz 8dbi Vertical Polarized 3G 4G LTE WIFI Outdoor Omni directional Antenna
Feature:
Exquisite appearance
Optimized dimension
Full day working
Wide frequency band,
low standing wave,strong anti-interference ability
Application:
GSM/CDMA/PCS/3G/WLAN/WIFI/4G/LTE system
Vehicle mobile communication device
AMXF-7027-8 Electrical Specifications |
|
Frequency range(MHz) | 698-960 / 1710-2700 |
Bandwidth(MHz) | 262 / 990 |
Gain(dBi) | 6 / 8 |
Half-power beam width(°) | H:360 V:25 |
VSWR | ≤2.5/1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum input power(W) | 100 |
Lightning protection | DC Ground |
Cable length | 30cm |
Input connector type | N female or Requested |
Mechanical Specifications | |
Dimensions (mm) | Φ60*750 |
Antenna weight(kg) | 1.5 |
Operating temperature(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Radome color | White |
Mounting way | Pole-holding |
Mounting hardware(mm) | ¢35-¢50 |
