| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXW-8090C-9 |
| Minimum Order Quantity: | 100 |
|---|---|
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-25 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 850～960 | Gain（dBi）: | 9 |
|---|---|---|---|
| VSWR: | ≤1.5 | Polarization: | Circular |
| Lightning Protection: | DC Ground | Input Connector Type: | N Female |
| High Light: | patch antenna,rfid antenna,gsm antenna |
||

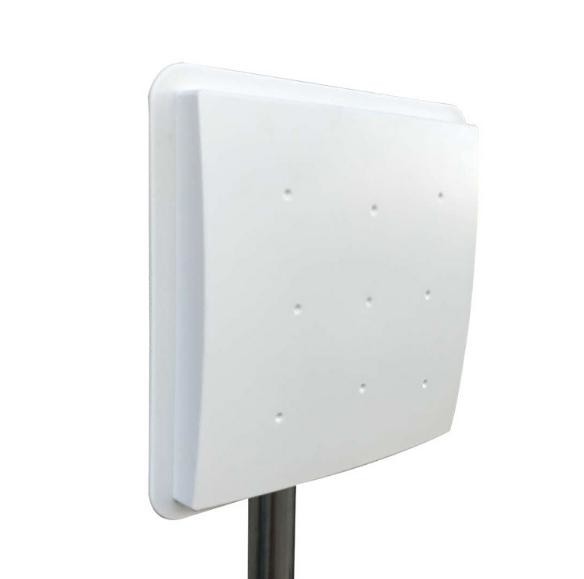

850～960MHz 9dBi Circular polarized Directional RFID panel Antenna With N female
Feature:
Circularly polarized.
Low VSWR and High Gain
Good performance
Exquisite appearance
Optimized dimension
Application:
RFID system, Logistics monitoring, personnel positioning,
Auto-parking system, Warehouse management system, etc.
Product Details
|
AMXW-8090C-9 Electrical Specifications |
|
|
Frequency range(MHz) |
850～960 |
|
Bandwidth(MHz) |
110 |
|
Gain(dBi) |
9 |
|
Half-power beam width(°) |
H:65 V:65 |
|
VSWR |
≤1.5 |
|
Input Impedance(Ω) |
50 |
|
Polarization |
Circular |
|
Maximum input power(W) |
100 |
|
Lightning protection |
DC Ground |
|
Input connector type |
N N Female |
|
Mechanical Specifications |
|
|
Dimensions-mm (Height/Width/Depth) |
260*260*45 |
|
Antenna weight(kg) |
1 |
|
Operating temperature(°c) |
-40～60 |
|
Rated Wind Velocity(m/s) |
60 |
|
Radome material |
ABS |
|
Radome color |
white |
|
Mounting hardware(mm) |
￠35-￠50 |
