| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001:2008 |
| Model Number: | AMXW-2527VH-D12L60 |
| Minimum Order Quantity: | 100 units |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 5-20 work days |
| Payment Terms: | T/T, Western Union,Paypal |
| Frequency Range（MHz）: | 2500～2700 | Polarization: | Vertical And Horizontal |
|---|---|---|---|
| Gain（dBi）: | 12 | Half-power Beam Width（°）: | H: 60 V: 30 |
| Front-to-back Ratio（dB）: | ≥25 | Input Impedance（Ω）: | 50 |
| Input Connector Type: | 2-N Female | Dimensions-mm (Height/Width/Depth): | 220*122*25 |

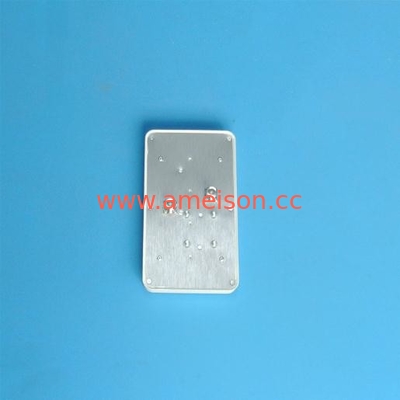

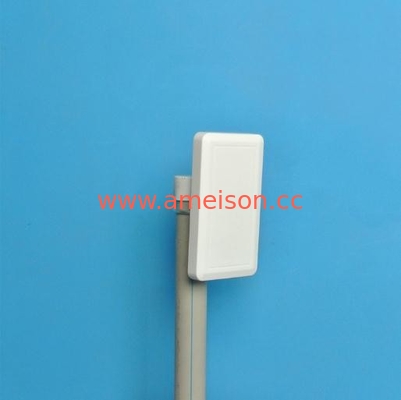

AMEISON 2500-2700MHz12dBi Directional WIFI Flat Patch Panel MIMO Antenna with 2*N female
Feature:
High gain
Full day working
Optimized dimension
Vertical and horizontal
Application:
2.5-2.7 GHz LTE system
Public wireless hot spot coverage
|
AMXW-2527VH-D12L60 Electrical Specifications |
|
| Frequency range(MHz) | 2500～2700 |
| Polarization | Vertical and Horizontal |
| Gain(dBi) | 2×12 |
| Half-power beam width(°) | H:60 V:30 |
| Front-to-back ratio(dB) | ≥25 |
| Input Impedance(Ω) | 50 |
| VSWR | ≤1.5 |
| Isolation between ports(dB) | ≥28 |
| Cross-polar ratio(dB) | ≥15@0º ≥10@+/-60º |
| Sidelobe suppression for first sidelobe above horizon(dB) | 15 |
| Maximum input power(W) | 100 |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | 2-N Female |
| Dimensions-mm (Height/Width/Depth) | 220*122*25 |
| Packing size(mm) | 260*160*90 |
| Antenna weight (kg) | 0.4 |
| Radome material | ABS |
| Radome color | White |
| Mechanical tilt(°) | 0～10 |
| Operating temperature(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Mounting hardware(mm) | ￠30～￠50 |
