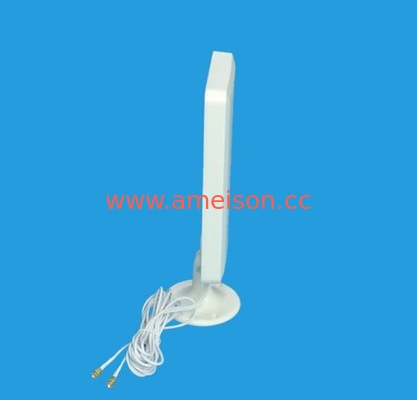

1700-2700MHz 9dbi 4G LTE Indoor Directional Panel MIMO Antenna

1700-2700MHz 9dbi 4G LTE Indoor Directional Panel MIMO Antenna

    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXW-1727VH-9C

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: PP bag /inner box/master carton or others
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Product Name: Directional Panel MIMO Antenna Frequency: 1710-2690mhz
    Gain: 9dBi VSWR: ≤1.5
    Impedance: 50Ω Polarization: Vertical And Horizontal
    Connector Type: SMA Male Dimensions: 220*122*25mm
    Color: White

    1700-2700MHz 9dbi 4G LTE Indoor Directional Panel MIMO Antenna




    Exquisite appearance

    Suitable for ordinary ceiling mounting

    Optimized dimension

    Vertical and Horizontal


    DCS,PCS,3G,LTE,WIFI system

    Wireless communication and data transmission system



    Electrical Specifications

    Frequency range(MHz) 1710~2690
    Polarization Vertical and Horizonta
    Gain(dBi) 2×9
    Half-power beam width(°) H:65 V:65
    Front-to-back ratio(dB) ≥25
    Input Impedance(Ω) 50
    VSWR ≤1.5
    Isolation between ports ≥28dB
    Maximum input power(W) 200
    Lightning protection DC Ground
    Mechanical Specifications
    Input connector type 2-SMA Male
    Dimensions-mm (Height/Width/Depth) 220*122*25
    Antenna weight (kg) 0.35
    Radome material ABS
    Radome color White
    Operating temperature(°c) -40~60
