| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXF-5158-12 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 5150～5850 | Bandwidth（MHz）: | 700 |
|---|---|---|---|
| Gain（dBi）: | 12 | VSWR: | ≤1.5 |
| Polarization: | Vertical | Lightning Protection: | DC Ground |
| Input Connector Type: | N Female Or Requested | Mounting Way: | Pole-holding |
| Color: | Gray Or Request | Radome: | Fiberglass |
| Product Name: | 5.8ghz Wifi Omni Fiberglass Antenna |

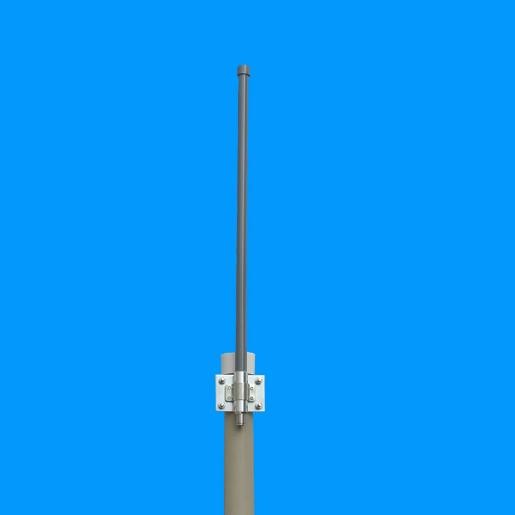

Ameison Outdoor high gain antenna wideband 5GHz 12dBi Omnidirectional Fiberglass Antenna
Feature:
●Exquisite appearance
●Good impact resistance,waterproofing and anticorrosion ability
●Full day working
●Optimized dimension
●High gain,low standing wave,strong anti-interference ability
Application:
●5.8G Wifi Wlan system
●Point-to-multipoint system
|
AMXF-5158-12 Electrical Specifications |
|
| Frequency range(MHz) | 5150～5850 |
| Bandwidth(MHz) | 700 |
| Gain(dBi) | 12 |
| Half-power beam width(°) | H:360 V:6 |
| VSWR | ≤1.8 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical |
| Maximum input power(W) | 100 |
| Lightning protection | DC Ground |
| Input connector type | N Female or Requested |
| Mechanical Specifications | |
| Dimensions (mm) | Φ20*580 |
| Antenna weight(kg) | 0.28 |
| Operating temperature(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Radome color | Gray |
| Mounting way | Pole-holding |
| Mounting hardware(mm) | ￠35-￠50 |
