| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXF-8027-4 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Product Name: | Omnidirectional Antenna | Frequency: | 806～960/1710～2700mhz |
|---|---|---|---|
| Gain: | 4dBi | VSWR: | ≤1.5 |
| Impedance: | 50Ω | Polarization: | Vertical |
| Connector Type: | N Female | Dimensions: | Φ60*180 |
| Color: | White |

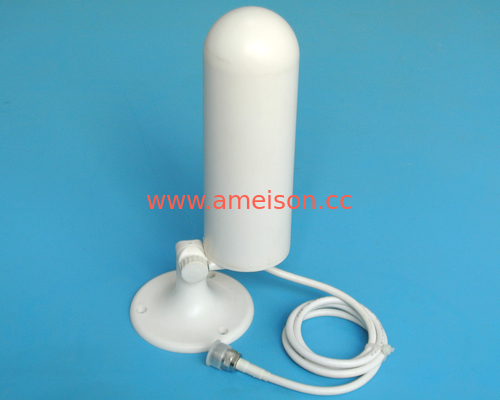

AMEISON manufacturer Omnidirectional Antenna 4dbi N female 806-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system
Feature:
Exquisite appearance
Optimized dimension
Full day working
Wide frequency band, low standing wave, strong anti-interference ability
Application:
GSM/ CDMA/ PCS/ 2G/3G/ WLAN/ 4G/ LTE system
Point-to-multipoint system
|
AMXF-8027-4 Electrical Specifications |
|
| Frequency range(MHz) | 806-960 / 1710-2700 |
| Bandwidth(MHz) | 154 / 790 |
| Gain(dBi) | 3 / 4 |
| Half-power beam width(°) | H:360 V:55 / 45 |
| VSWR | ≤1.5 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical |
| Maximum input power(W) | 100 |
| Lightning protection | DC Ground |
| Input connector type | SMA Male or Requested |
| Mechanical Specifications | |
| Dimensions (mm) | Φ60*180 |
| Cable length (cm) | 30 |
| Antenna weight(kg) | 0.4 |
| Operating temperature(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Radome material | ABS |
| Radome color | White or customized |
| Mounting way | Pole-holding |
| Mounting hardware(mm) | ￠35-￠50 |
