| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXF-1922-10 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 1920-2170 | Bandwidth（MHz）: | 250 |
|---|---|---|---|
| Gain（dBi）: | 10 | Half-power Beam Width（°）: | H:360 V:8 |
| VSWR: | ≤1.5 | Polarization: | Vertical |
| Lightning Protection: | DC Ground | Input Connector Type: | N Female Or Requested |
| Mounting Way: | Pole-holding |

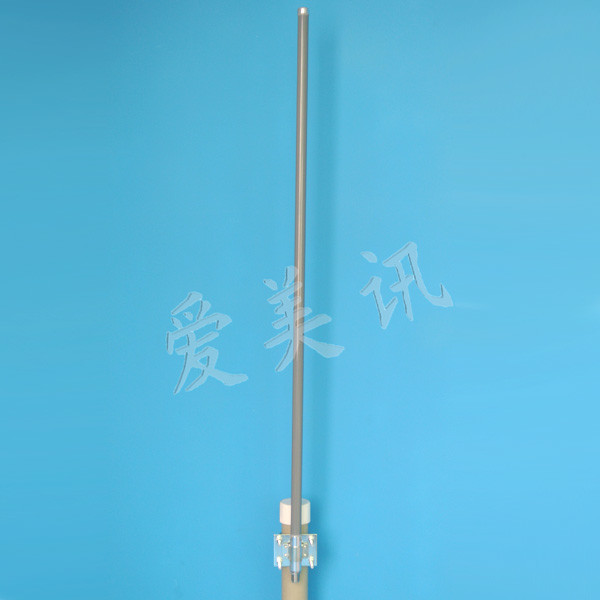

Outdoor 3G 1920-2170 MHz 10dBi Omni Directional Antenna with N female
Feature:
Exquisite appearance
Good impact resistance, waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain, low standing wave, strong anti-interference ability
Application:
3g system
Point-to-multipoint system
|
AMXF-1922-6 Electrical Specifications |
|
| Frequency range(MHz) | 1920-2170 |
| Bandwidth(MHz) | 250 |
| Gain(dBi) | 10 |
| Half-power beam width(°) | H:360 V:8 |
| VSWR | ≤1.5 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical, Linear |
| Maximum input power(W) | 100 |
| Lightning protection | DC Ground |
| Input connector type | N Female or Requested |
| Mechanical Specifications | |
| Dimensions (mm) | Φ20*1250 |
| Antenna weight(kg) | 0.30 |
| Operating temperature(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Radome color | Gray or White or others |
| Radome Material | Fiberglass |
| Waterproof Standard | IP65/ IP67 |
| Mounting way | Wall/ Pole-holding |
| Mounting hardware(mm) | ￠35 - ￠50 |
