| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXF-5158-10 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Product Name: | Omnidirectional Antenna | Frequency: | 5150～5850mhz |
|---|---|---|---|
| Gain: | 10dBi | VSWR: | ≤1.5 |
| Impedance: | 50Ω | Polarization: | Vertical |
| Connector Type: | N Female | Dimensions: | Φ20*420 |
| Color: | Gray |

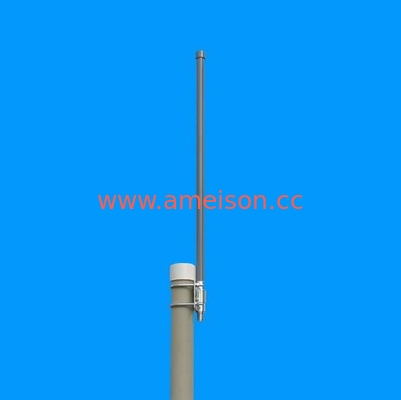

AMEISON manufacturer Fiberglass Omnidirectional Antenna 10dbi N female connector Gray color for 5.8G Wifi Wlan system
Feature:
Exquisite appearance
Good impact resistance,waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain,low standing wave,strong anti-interference ability
Application:
5.8G Wifi Wlan system
Point-to-multipoint system
|
AMXF-5158-10 Electrical Specifications |
|
| Frequency range(MHz) | 5150～5850 |
| Bandwidth(MHz) | 700 |
| Gain(dBi) | 10 |
| Half-power beam width(°) | H:360 V:10 |
| VSWR | ≤1.8 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical |
| Maximum input power(W) | 100 |
| Lightning protection | DC Ground |
| Input connector type | N Female or Requested |
| Mechanical Specifications | |
| Dimensions (mm) | Φ20*420 |
| Antenna weight(kg) | 0.20 |
| Operating temperature(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Radome color | Gray |
| Mounting way | Pole-holding |
| Mounting hardware(mm) | ￠35-￠50 |
