| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXF-1090-5 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range(MHz): | 1070-1110 | Gain(dBi): | 5 |
|---|---|---|---|
| VSWR: | ≤1.5 | Connector: | N Female Or Requested |

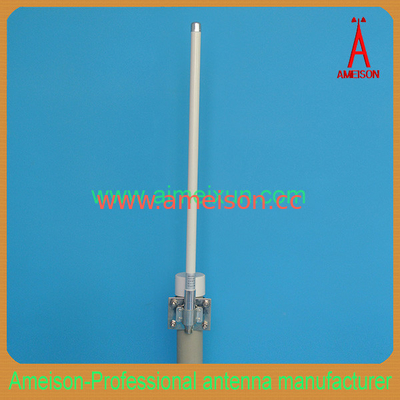

AMEISON 1070 - 1110 MHz 5dBi Omnidirectional Fiberglass Antenna for ADS-B 1090mhz receiver outdoor brodcast COMM GNSS
Feature:
Exquisite appearance
Good impact resistance, waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain, low standing wave, strong anti-interference ability
Application:
1070-1110 MHz system
ADS-B system
Wireless communication and data transmission system
|
AMXF-1090-5 Electrical Specifications |
|
| Frequency range(MHz) | 1070-1110 |
| Bandwidth(MHz) | 40 |
| Gain(dBi) | 5 |
| Half-power beam width(°) | H:360 V:20 |
| VSWR | ≤1.5 |
| Input Impedance(Ω) | 50 |
| Polarization | Vertical |
| Maximum input power(W) | 100 |
| Lightning protection | DC Ground |
| Input connector type | N Female or Requested |
| Mechanical Specifications | |
| Dimensions (mm) | Φ20*660 |
| Antenna weight(kg) | 0.46 |
| Operating temperature(°c) | -40~60 |
| Rated Wind Velocity(m/s) | 60 |
| Radome color | Gray or White or others |
| Radome Material | Fiberglass |
| Mounting way | Wall/ Pole-holding |
| Waterproof Standard | IP65/ IP67 |
| Mounting hardware(mm) | 35 - 50 |
We are much pleased to know you are interested in our products and will contact us for quotation and specification.
There have more than 600 models antennas in our factory, In order to save your time and offer the optimum models (reasonable prices) and get our quick response, following is some important information we have to know to quote in 24 hours.
Warm Reminded:
If you are interested in Antennas,please advise us:
1. Frequency range(if has center frequency point, that can be best.)
2. Gain request
3. Connector type at another end of cable
4. Cable type(if available) + Cable length(if available)
5. Indoor Installation Mount type Or Outdoor Type
6. Quantity per model(More quantity, price can be concessible.)
