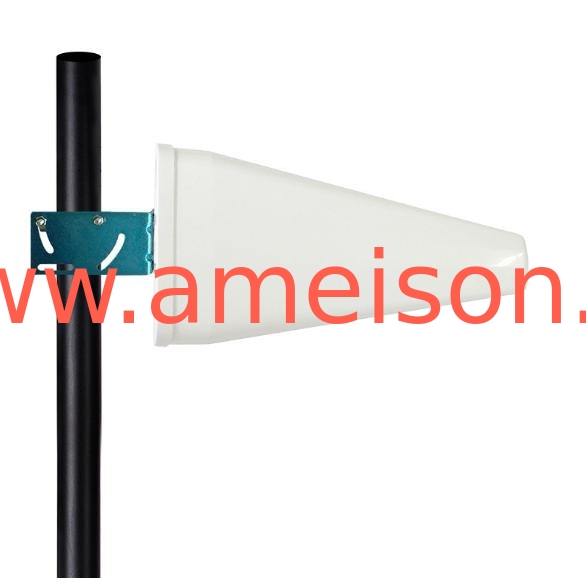

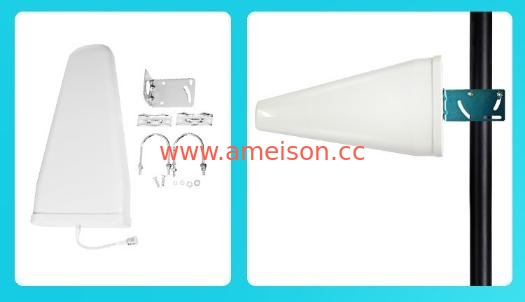

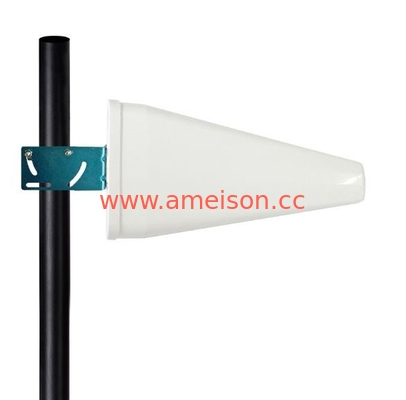

698MHz-2700MHz 11dBi Log Periodic DAS Antenna with N female high gain outdoor directional donor antenna

698MHz-2700MHz 11dBi Log Periodic DAS Antenna with N female high gain outdoor directional donor antenna

698MHz-2700MHz 11dBi Log Periodic DAS Antenna with N female high gain outdoor directional donor antenna

Product Details:

Place of Origin: China
Brand Name: AMEISON
Certification: ISO 9001: 2008
Model Number: AMXL-7027-11

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: EXW Price
Packaging Details: bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Delivery Time: 10-20 working days
Payment Terms: TT,Paypal,Western Union
Supply Ability: 50,000 Pieces per Month
Contact Now
Detailed Product Description
Frequency Range(MHz): 806~960/1710~2700 Gain(dBi): 10/11
VSWR: ≤1.5 Polarization: Vertical
Lightning Protection: DC Ground Input Connector Type: N Female

698MHz-2700MHz 11dBi Log Periodic DAS Antenna with N female high gain outdoor directional donor antenna



Feature:

Exquisite appearance

good defense ability

Impact resistance.waterproofing,anticorrosion,etc.

Frequency coverage for 700-2700 MHz, 850 MHz, AWS and PCS bands

Designed with Broadband technology.

Medium gain, low VSWR



Application:

public wireless hotspot applications

Distributed Antenna Systems

Cellular networks

IEEE 802.11b/g WiFi applications

LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M applications



AMXL-7027-11

Electrical Specifications

Frequency range(MHz)

698~960/1710~2700

Bandwidth(MHz)

154/990

Gain(dBi)

10/11

Half-power beam width(°)

H:65/50 V:55/40

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC Ground

Input connector type

N Female

Mechanical Specifications

Dimensions (mm)

445*210*65

Antenna weight(kg)

0.91

Operating temperature(°c)

-40~60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting hardware(mm)

¢35-¢50
