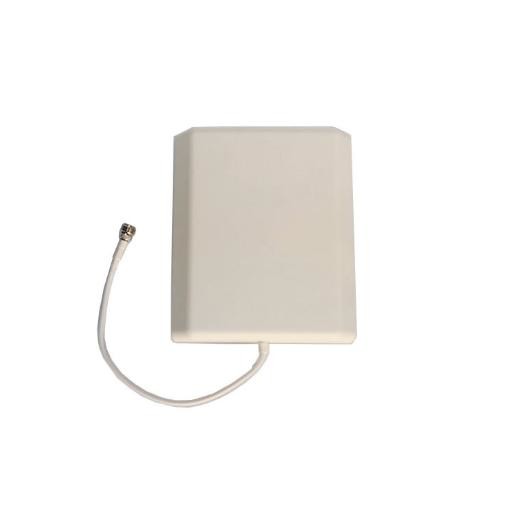

806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna

806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna

    • 806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna
    • 806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna
    • 806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna
  • 806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXW-8027-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Frequency Range(MHz): 806~960/1710~2700 Bandwidth(MHz): 154/990
    Gain(dBi): 7/10 VSWR: ≤1.5
    Polarization: Vertical Lightning Protection: DC Ground
    Input Connector Type: N Female Or Requested

    806 - 2700MHz 10dBi Indoor Wall Mount 3G 4G LTE Directional Flat Patch Panel Antenna





    Feature:

    High gain,strong anti-interference ability

    Good defense system

    Full day working

    Exquisite appearance

    Optimized dimension



    Application:

    Indoor coverage system

    CDMA800/GSM900/3G/4g/LTE/WLAN system



    AMXW-8027-10

    Electrical Specifications

    Frequency range(MHz) 806~960/1710~2700
    Bandwidth(MHz) 154/990
    Gain(dBi) 7/10
    Half-power beam width(°) H:70/60 V:55/45
    VSWR ≤1.5
    Input Impedance(Ω) 50
    Polarization Vertical
    Maximum input power(W) 50
    Lightning protection DC Ground
    Cable length 30cm or request
    Input connector type SMA male or Requested
    Mechanical Specifications
    Dimensions-mm (Height/Width/Depth) 210*180*45
    Antenna weight(kg) 0.57
    Operating temperature(°c) -40~60
    Rated Wind Velocity(m/s) 60
    Radome material ABS
    Radome color white
    Mounting Pole(mm) ¢35-¢50
