| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXW-2400-12 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 2400-2483 | Band Width（MHz）: | 83 |
|---|---|---|---|
| Gain（dBi）: | 12 | Half-power Beam Width（°）: | H：50 V：30 |
| VSWR: | ≤1.5 | Polarization: | Vertical |
| Lightning Protection: | DC Ground | Input Connector Type: | SMA Male Or Requested |
| High Light: | wifi antenna,flat patch antenna,wifi panel antenna |
||

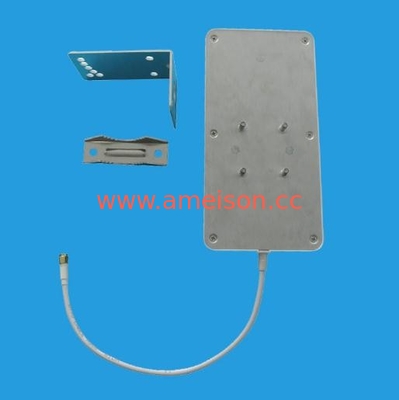

AMEISON 2400-2500MHz Outdoor Indoor 12dBi Flat Panel Antenna 2.4GHz Directional WIFI Antenna
Feature:
High gain
strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
2.4GHZ WLAN system
2.4GHZ ISM frequency band
WIFI system
|
AMXW-2400-12 Electrical Specifications |
|
| Frequency range(MHz) | 2400-2483 |
| Polarization | Vertical |
| Gain(dBi) | 12 |
| Horizontal beamwidth(°) | 50 |
| Vertical beamwidth(°) | 30 |
| Front-to-back ratio(dB) | ≥25 |
| Input Impedance(Ω) | 50 |
| VSWR | ≤1.5 |
| Maximum input power(W) | 50 |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | SMA Male |
| Cable length(cm) | 30 |
| Dimensions-mm (Height/Width/Depth) | 198*98*25 |
| Antenna weight(kg) | 0.4 |
| Radome material | ABS |
| Radome color | white |
| Mechanical tilt(°) | 0～10 |
| Operating Temperature(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Mounting way | pole-holding |
| Mounting hardware(mm) | ￠35-￠50 |
