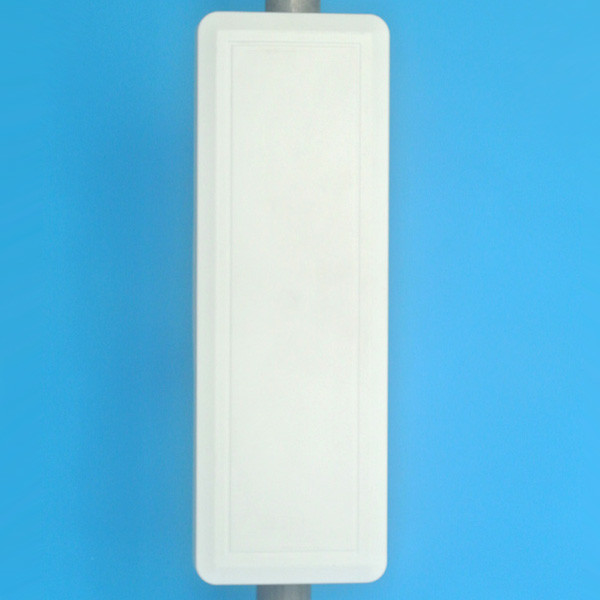

AMEISON High gain 2400-2500MHz 15dBi Directional Flat Patch Panel MIMO Antenna for WIFI system

AMEISON High gain 2400-2500MHz 15dBi Directional Flat Patch Panel MIMO Antenna for WIFI system

    • AMEISON High gain 2400-2500MHz 15dBi Directional Flat Patch Panel MIMO Antenna for WIFI system
    • AMEISON High gain 2400-2500MHz 15dBi Directional Flat Patch Panel MIMO Antenna for WIFI system
  • AMEISON High gain 2400-2500MHz 15dBi Directional Flat Patch Panel MIMO Antenna for WIFI system

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXW-2425VH-D15L60

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Product Name: MIMO Patch Panel Antenna Frequency Range(MHz): 2400~2500
    Polarization: Vertical And Horizontal Gain(dBi): 2×15
    V.S.W.R.: ≤1.5 Input Connector Type: 2-N Female
    Dimensions-mm (Height/Width/Depth): 405*140*28

    AMEISON High gain 2400-2500MHz 15dBi Directional Flat Patch Panel MIMO Antenna for WIFI system



    Feature:

    High gain

    Full day working

    Optimized dimension

    Vertical or horizontal

    Application:

    2.4 GHz WLAN system

    2.4 GHz ISM band

    Public wireless hot spot coverage

    Wi-Fi system



    AMXW-2425VH-D15L60

    Electrical Specifications

    Frequency range(MHz) 2400~2500
    Polarization Vertical and Horizontal
    Gain(dBi) 2×15
    Half-power beam width(°) H:60 V:14
    Front-to-back ratio(dB) ≥25
    Input Impedance(Ω) 50
    VSWR ≤1.5
    Isolation between ports(dB) ≥28
    Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
    Sidelobe suppression for first sidelobe above horizon(dB) 15
    Maximum input power(W) 100
    Lightning protection DC Ground
    Mechanical Specifications
    Input connector type 2-N Female
    Dimensions-mm (Height/Width/Depth) 405*140*28
    Packing size(mm) 440*160*90
    Antenna weight (kg) 0.52
    Radome material ABS
    Radome color White
    Mechanical tilt(°) 0~10
    Operating temperature(°c) -40~60
    Rated Wind Velocity(m/s) 60
    Waterproof Standard IP54/ IP65/ IP67
    Mounting way Pole-holding
    Mounting hardware(mm) ¢30~¢50
