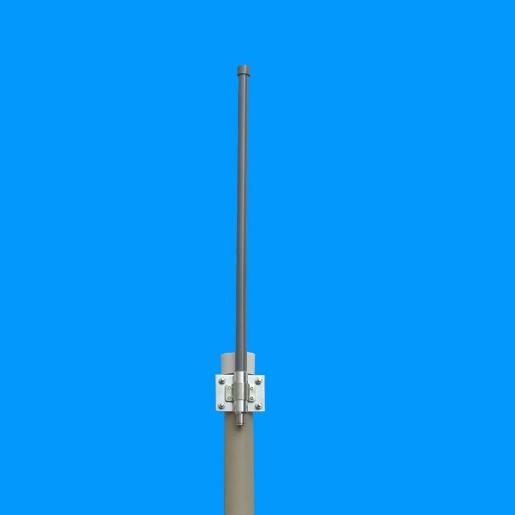

AMEISON 2400-2483MHz 8dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna

AMEISON 2400-2483MHz 8dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna

    • AMEISON 2400-2483MHz 8dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna
    • AMEISON 2400-2483MHz 8dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna
  • AMEISON 2400-2483MHz 8dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXF-2400-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Frequency Range(MHz): 2400~2483 Gain(dBi): 8
    VSWR: ≤1.5 Polarization: Vertical
    Lightning Protection: DC Ground Input Connector Type: N Female Or Requested
    Mounting Way: Pole-holding

    AMEISON 2400-2483MHz 8dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna



    Feature:

    Exquisite appearance

    Good impact resistance,waterproofing and anticorrosion ability

    Full day working

    Optimized dimension

    High gain,low standing wave,strong anti-interference ability



    Application:

    2.4G/WIFI/WLAN system

    Point-to-multipoint system



    AMXF-2400-8

    Electrical Specifications

    Frequency range(MHz) 2400~2483
    Bandwidth(MHz) 83
    Gain(dBi) 8
    Half-power beam width(°) H:360 V:10
    VSWR ≤1.5
    Input Impedance(Ω) 50
    Polarization Vertical
    Maximum input power(W) 100
    Lightning protection DC Ground
    Input connector type N Female or Requested
    Mechanical Specifications
    Dimensions (mm) Φ20*550
    Antenna weight(kg) 0.4
    Operating temperature(°c) -40~60
    Rated Wind Velocity(m/s) 60
    Radome color Gray
    Mounting way Pole-holding
    Mounting hardware(mm) ¢35-¢50
