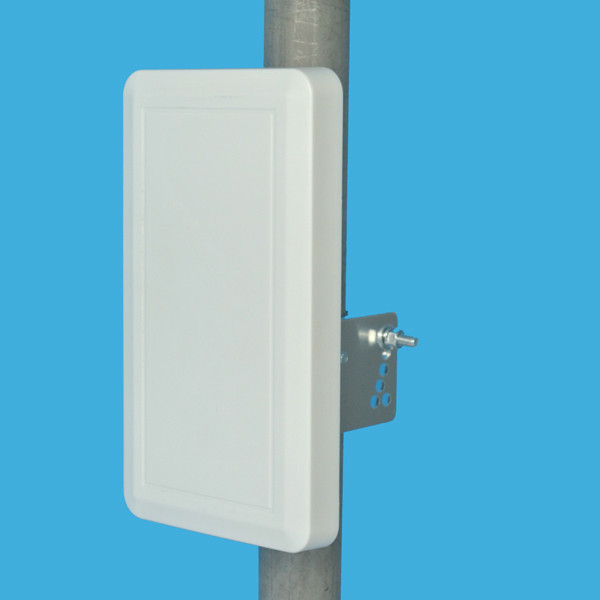

AMEISON 2400-2500MHz Directional WIFI Flat Patch Panel MIMO Antenna with 2*N female

AMEISON 2400-2500MHz Directional WIFI Flat Patch Panel MIMO Antenna with 2*N female

AMEISON 2400-2500MHz Directional WIFI Flat Patch Panel MIMO Antenna with 2*N female

Product Details:

Place of Origin: China
Brand Name: AMEISON
Certification: ISO 9001:2008
Model Number: AMXW-2425VH-D12L60

Payment & Shipping Terms:

Minimum Order Quantity: 100 units
Price: EXW Price
Packaging Details: bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Delivery Time: 5-20 work days
Payment Terms: T/T, Western Union,Paypal
Contact Now
Detailed Product Description
Frequency Range(MHz): 2400~2500 Polarization: Vertical And Horizontal
Gain(dBi): 12 Half-power Beam Width(°): H: 60 V: 30
Front-to-back Ratio(dB): ≥25 Input Impedance(Ω): 50
Input Connector Type: 2-N Female Dimensions-mm (Height/Width/Depth): 220*122*25

AMEISON 2400-2500MHz Directional WIFI Flat Patch Panel MIMO Antenna with 2*N female





Feature:

High gain

Full day working

Optimized dimension

Vertical and horizontal

Application:

2.4 GHz WLAN system

2.4 GHz ISM band

Public wireless hot spot coverage

Wi-Fi system





AMXW-2425VH-D12L60

Electrical Specifications

Frequency range(MHz) 2400~2500
Polarization Vertical and Horizontal
Gain(dBi) 12
Half-power beam width(°) H: 60 V: 30
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports(dB) ≥28
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Sidelobe suppression for first sidelobe above horizon(dB) 15
Maximum input power(W) 100
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 220*122*25
Packing size(mm) 260*160*90
Antenna weight(kg) 0.37
Radome material ABS
Radome color White
Mechanical tilt(°) 0~10
Operating temperature(°c) -40~60
Rated Wind Velocity(m/s) 60
Waterproof Standard IP54/ IP65/ IP67
Mounting way Pole-holding
Mounting hardware(mm) ¢30~¢50
