| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXW-2425VH-D12L65 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 2400～2500 | Polarization: | Vertical And Horizontal |
|---|---|---|---|
| Gain（dBi）: | 2×12 | Half-power Beam Width（°）: | H:65 V :30 |
| VSWR: | ≤1.5 | Lightning Protection: | DC Ground |
| Input Connector Type: | 2-N Female | ||
| Highlight: | mimo antenna,4g lte antenna mimo,lte antenna 4g mimo |
||

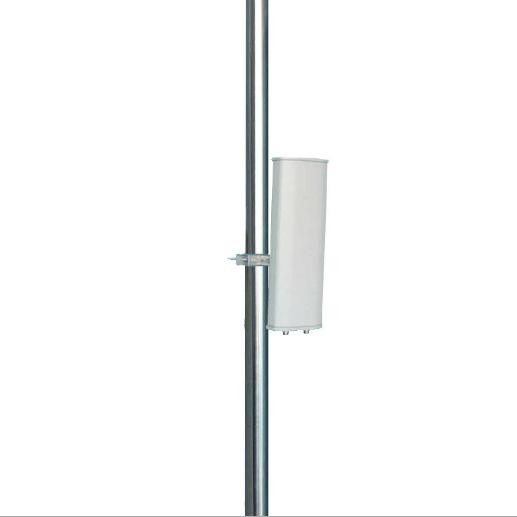

2400-2500Mhz High gain 12dbi V & H Polarized directional outdoor 2.4GHz WIFI MIMO panel Antenna
Feature:
High gain
Full day working
Optimized dimension
Vertical or horizontal
Application:
2.4GHz WLAN system
2.4 GHz ISM band
public wireless hot spot coverage
Wi-Fi system
|
AMXP-2425VH-D12L65 Electrical Specifications |
|
| Frequency range(MHz) | 2400～2500 |
| Polarization | Vertical and Horizontal |
| Gain(dBi) | 2×12 |
| Half-power beam width(°) | H:65 V:30 |
| Front-to-back ratio(dB) | ≥25 |
| Input Impedance(Ω) | 50 |
| VSWR | ≤1.5 |
| Isolation between ports | ≥28dB |
| Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º |
| Sidelobe suppression for first sidelobe above horizon | 15 dB |
| Maximum input power(W) | 200 |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | 2-N Female |
| Dimensions-mm (Height/Width/Depth) | 260*114*54 |
| Packing size(mm) | 330*130*110 |
| Antenna weight (kg) | 1.5 |
| Radome material | UPVC |
| Radome color | Gray |
| Mechanical tilt(°) | 0～10 |
| Operating temperature(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Mounting hardware(mm) | ￠35～￠75 |
