| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXP-2458VH-D17L90 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 2400～2500 And 5725～5850 | Polarization: | Vertical And Horizontal |
|---|---|---|---|
| Gain（dBi）: | 2×17 And 2×17 | Lightning Protection: | DC Ground |
| Input Connector Type: | 4×N Female | ||
| High Light: | dual band antenna,diamond dual band antenna,antenna dual band |
||
MIMO sector panel Antenna
High gain
Full day working
Optimized dimension
Vertical or Horizontal polarization

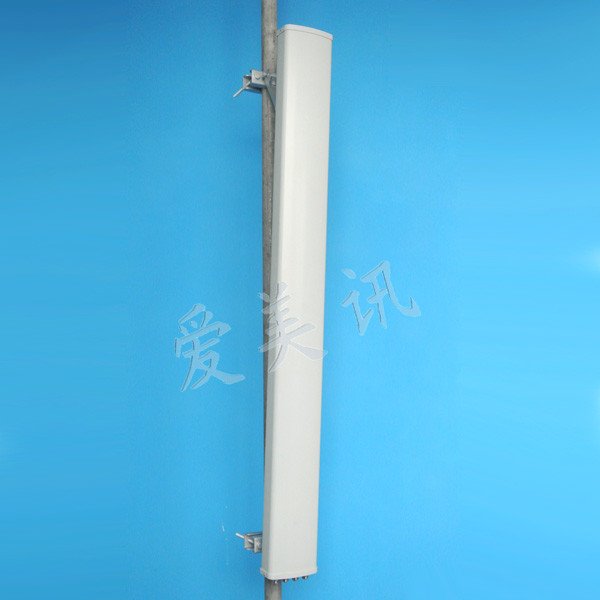

Amesion 2.4 GHz and 5.8 GHz Sectorial Panel Antenna
Model No.: AMXP-2458VH-D17L90
Feature:
High gain
Full day working
Optimized dimension
Vertical or horizontal
Application:
2.4 GHz WLAN system
2.4GHz ISM band
Wi-Fi system
5.8 GHz WLAN system
5.8 GHz ISM band
|
AMXP-2458VH-D17L90 Electrical Specifications |
||
|
Frequency range(MHz) |
2400～2500 |
5725～5850 |
|
Polarization |
Vertical and Horizontal |
|
|
Gain(dBi) |
2×17 |
2×17 |
|
Half-power beam width(0°) |
H:90 V:7 |
H:90 V:7 |
|
Front-to-back ratio(dB) |
≥23 |
≥23 |
|
Input Impedance(Ω) |
50 |
|
|
Isolation between ports(dB) |
≥28 |
|
|
Cross-polar ratio(dB) |
≥15@0º ≥10@+/-60º |
|
|
Sidelobe suppression for first sidelobe above horizon(dB) |
15 |
|
|
VSWR |
≤1.5 |
≤1.5 |
|
Maximum input power(W) |
200 |
200 |
|
Lightning protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Input connector type |
4×N Female |
|
|
Dimensions-mm (Height/Width/Depth) |
1500*128*58 |
|
|
Packing size(mm) |
1550*170*150 |
|
|
Antenna weight (kg) |
8.5 |
|
|
Radome material |
UPVC |
|
|
Radome color |
Gray |
|
|
Mechanical tilt(°) |
0～10 |
|
|
Operating temperature(°c) |
-40～60 |
|
|
Rated Wind Velocity(m/s) |
60 |
|
|
Mounting hardware(mm) |
Φ35～Φ90 |
|
