| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXP-3338VH-D16L65 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 3300～3800 | Polarization: | Vertical And Horizontal |
|---|---|---|---|
| Gain（dBi）: | 16 | VSWR: | ≤1.5 |
| Lightning Protection: | DC Ground | Input Connector Type: | N Female |

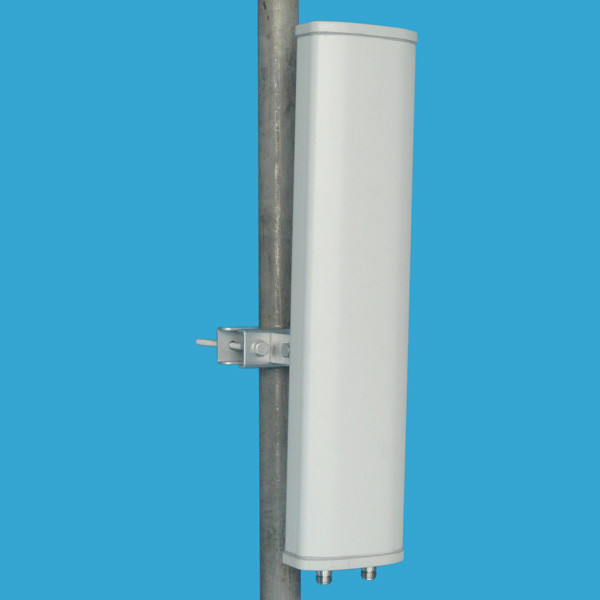

AMEISON 3300-3800MHHz 16dBi 65 degrees Vertical and Horizontal Polarized Sector Panel Antenna Wimax Antenna
Feature:
High gain
Full day working
Optimized dimension
Polarization Vertical or horizontal
Application:
3.3 ～ 3.8 GHz wireless access coverage
|
AMXP-3338VH-D16L65 Electrical Specifications |
|
| Frequency range(MHz) | 3300～3800 |
| Polarization | Vertical and Horizontal |
| Gain(dBi) | 16 |
| Half-power beam width(°) | H:65 V:10 |
| Front-to-back ratio(dB) | ≥25 |
| Input Impedance(Ω) | 50 |
| VSWR | ≤1.5 |
| Isolation between ports(dB) | ≥28 |
| Cross-polar ratio(dB) | ≥15@0º ≥10@+/-60º |
| Sidelobe suppression for first sidelobe above horizon(dB) | 15 |
| Maximum input power(W) | 200 |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | 2 N-Female |
| Dimensions-mm (Height/Width/Depth) | 610*114*54 |
| Packing size(mm) | 650*155*145 |
| Antenna weight (kg) | 3.0 |
| Radome material | UPVC |
| Radome color | Gray |
| Mechanical tilt(°) | 0～10 |
| Operating temperature:(°c) | -40～60 |
| Rated Wind Velocity(m/s) | 60 |
| Waterproof Standard | IP67 |
| Mounting way | pole-holding |
| Mounting hardware(mm) | ￠35～￠75 |
