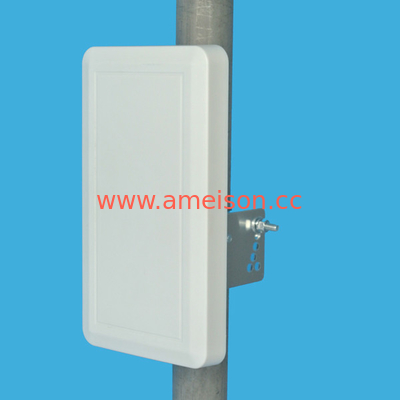

AMEISON wifi High gain Directional MIMO Flat Panel Antenna 2.4ghz with N female connector

AMEISON wifi High gain Directional MIMO Flat Panel Antenna 2.4ghz with N female connector

    • AMEISON wifi High gain Directional MIMO Flat Panel Antenna 2.4ghz with N female connector
    • AMEISON wifi High gain Directional MIMO Flat Panel Antenna 2.4ghz with N female connector
    • AMEISON wifi High gain Directional MIMO Flat Panel Antenna 2.4ghz with N female connector
  • AMEISON wifi High gain Directional MIMO Flat Panel Antenna 2.4ghz with N female connector

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXW-2400VH-D12L60

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: PP bag /inner box/master carton or customized
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Frequency Range(MHz): 2400~2500 Polarization: Vertical And Horizontal
    Gain(dBi): 2×12 Half-power Beam Width(°): H:60 V:60
    VSWR: ≤1.5 Maximum Input Power(W): 100
    Lightning Protection: DC Ground Input Connector Type: 2-N Female

    AMEISON wifi High gain Directional MIMO Flat Panel Antenna 2.4ghz with N female connector



    Feature:

    High gain

    Full day working

    Optimized dimension

    Vertical or horizontal

    Application

    2.4 GHz WLAN system

    2.4 GHz ISM frequency band

    Public wireless hot spot coverage



    AMXW-2400VH-D12L60

    Electrical Specifications

    Frequency range(MHz) 2400~2500
    Polarization Vertical and Horizontal
    Gain(dBi) 2×12
    Half-power beam width(°) H: 60 V: 30
    Front-to-back ratio(dB) ≥25
    Input Impedance(Ω) 50
    VSWR ≤1.5
    Maximum input power(W) 100
    Lightning protection DC Ground
    Mechanical Specifications
    Input connector type 2-N Female
    Dimensions-mm (Height/Width/Depth) 220*122*25
    Packing size(mm) 260*160*90
    Antenna weight (kg) 0.37
    Radome material ABS
    Radome color White
    Mechanical tilt(°) 0~10
    Operating temperature(°c) -40~60
    Rated Wind Velocity(m/s) 60
    Mounting hardware(mm) ¢30~¢50
