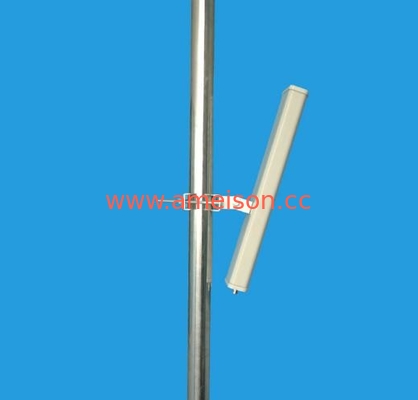

AMEISON 2400-2500MHz 13dBi Vertical Polarization WIFI Directional Sector Panel Antenna

AMEISON 2400-2500MHz 13dBi Vertical Polarization WIFI Directional Sector Panel Antenna

    • AMEISON 2400-2500MHz 13dBi Vertical Polarization WIFI Directional Sector Panel Antenna
    • AMEISON 2400-2500MHz 13dBi Vertical Polarization WIFI Directional Sector Panel Antenna
  • AMEISON 2400-2500MHz 13dBi Vertical Polarization WIFI Directional Sector Panel Antenna

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXP-2425V-D13L120

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: PP bag /inner box/master carton or customized
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Frequency Range(MHz): 2400~2500 Polarization: Vertical
    Gain(dBi): 13 VSWR: ≤1.5
    Maximum Input Power(W): 200 Lightning Protection: DC Ground
    Input Connector Type: N Female Mounting Hardware(mm): ¢35~¢75

    AMEISON 2400-2500MHz 13dBi Vertical Polarization WIFI Directional Sector Panel Antenna



    Feature:

    High gain

    Full day working

    Optimized dimension

    Dual polarization



    Application:

    2.4 GHz WLAN system

    Public wireless hot spot coverage

    Wi-Fi system



    AMXP-2425V-D13L120

    Electrical Specifications

    Frequency range(MHz) 2400~2500
    Polarization Vertical
    Gain(dBi) 13
    half-power beam width(°) H:120 V:14
    Front-to-back ratio(dB) ≥18
    Input Impedance(Ω) 50
    VSWR ≤1.5
    Sidelobe suppression for first sidelobe above horizon 15 dB
    Maximum input power(W) 200
    Lightning protection DC Ground
    Mechanical Specifications
    Input connector type N Female
    Dimensions-mm (Height/Width/Depth) 500*114*54
    Packing size(mm) 530*130*110
    Antenna weight (kg) 4
    Radome material UPVC
    Radome color Gray
    Mechanical tilt(°) 0~10
    Operating temperature:(°c) -40~60
    Rated Wind Velocity(m/s) 60
    Mounting hardware(mm) ¢35~¢75
