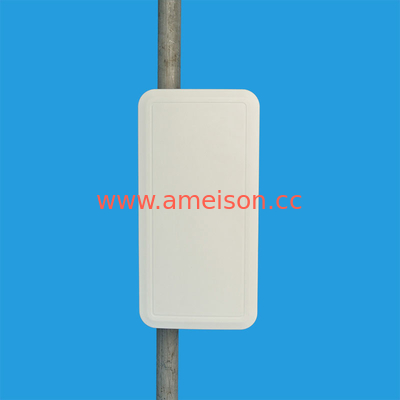

AMEISON 2400-2483MHz Directional Panel Antenna Indoor Outdoor WIFI 2.4GHz Antenna

AMEISON 2400-2483MHz Directional Panel Antenna Indoor Outdoor WIFI 2.4GHz Antenna

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXW-2400-18B

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: PP bag /inner box/master carton or customized
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Frequency Range(MHz): 2400-2483 Polarization: Vertical
    Input Impedance(Ω): 50 VSWR: ≤1.5
    Input Connector Type: N Female Dimensions-mm (Height/Width/Depth): 410*207*36
    Bandwidth(MHz): 83 Gain(dBi): 18

    AMEISON 2400-2483MHz Directional Panel Antenna Indoor Outdoor WIFI 2.4GHz Antenna



    Feature:

    High gain,strong anti-interference ability

    Good defense system

    Full day working

    Exquisite appearance

    Optimized dimension



    Application:

    2.4GHZ WLAN system

    2.4GHZ ISM band

    WIFI communication system



    AMXW-2400-18B

    Electrical Specifications

    Frequency range(MHz) 2400-2483
    Bandwidth(MHz) 83
    Gain(dBi) 18
    Half-power beam width(°) H:30 V:15
    VSWR ≤1.5
    Input Impedance(Ω) 50
    Polarization Vertical
    Maximum input power(W) 50
    Lightning protection DC Ground
    Input connector type N Female
    Mechanical Specifications
    Dimensions-mm (Height/Width/Depth) 410*207*36
    Antenna weight(kg) 0.8
    Operating temperature(°c) -40~60
    Rated Wind Velocity(m/s) 60
    Radome color white
    Mounting way Pole-holding
    Mounting hardware(mm) ¢35~¢50
