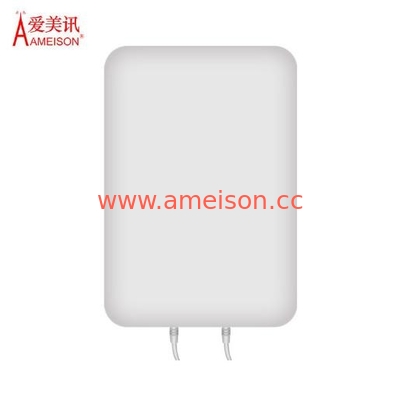

698- 2700 MHz Multiband Dual polarized outdoor or indoor 4G LTE directional MIMO Panel Antenna

698- 2700 MHz Multiband Dual polarized outdoor or indoor 4G LTE directional MIMO Panel Antenna

    • 698- 2700 MHz Multiband Dual polarized outdoor or indoor 4G LTE directional MIMO Panel Antenna
    • 698- 2700 MHz Multiband Dual polarized outdoor or indoor 4G LTE directional MIMO Panel Antenna
    • 698- 2700 MHz Multiband Dual polarized outdoor or indoor 4G LTE directional MIMO Panel Antenna
  • 698- 2700 MHz Multiband Dual polarized outdoor or indoor 4G LTE directional MIMO Panel Antenna

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXW-7027VH-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: PP bag /inner box/master carton or others
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Frequency Range(MHz): 698-960/1710-2700 Gain(dBi): 8/10
    VSWR: ≤2 Polarization: Dual Polarized
    Lightning Protection: DC Ground Input Connector Type: 2*N Female Or Requested

    698- 2700 MHz Dual polarized outdoor 4G LTE directional MIMO Panel Antenna





    Feature:

    High gain, strong anti-interference ability

    Good defense system

    Full day working

    Exquisite appearance

    Optimized dimension



    Application:

    3g / 4g/ LTE/ WLAN/ Wi-Fi system
    Wireless communication and data transmission system






    Electrical Specifications
    Frequency range(MHz) 698-960 1710-2690
    Gain(dBi) 8 10
    Polarization Vertical and Horizontal
    Half-power beam width(°) H:90 V:65 H:75 V:55
    VSWR ≤2.0
    Isolation between ports (dB) ≥23
    Input Impedance(Ω) 50
    Maximum input power(W) 50
    Lightning protection DC Ground
    Input connector type 2xN Female
    Mechanical Specifications
    Dimensions(mm) 260*170*60
    Antenna weight(kg) 0.85
    Operating temperature(°c) -40~60
    Radome material ABS
    Radome color white
    Mounting way wall-hanging or pole-holding
    Mounting hardware(mm) ¢35~¢50
