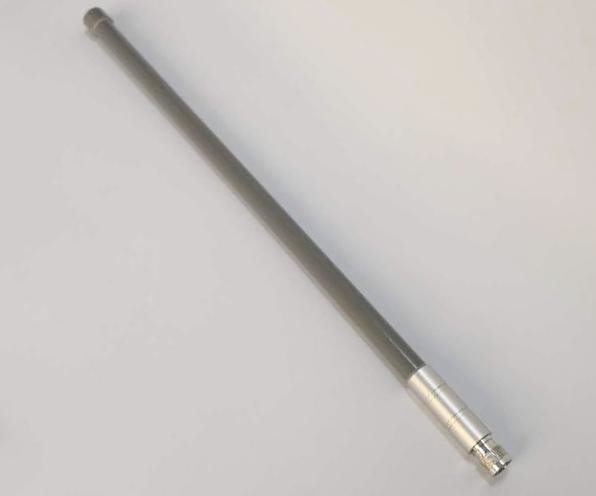

AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi NJ connector Gray color for 2.4G WIFI WLAN system

AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi NJ connector Gray color for 2.4G WIFI WLAN system

    • AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi NJ connector Gray color for 2.4G WIFI WLAN system
    • AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi NJ connector Gray color for 2.4G WIFI WLAN system
    • AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi NJ connector Gray color for 2.4G WIFI WLAN system
    • AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi NJ connector Gray color for 2.4G WIFI WLAN system
    • AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi NJ connector Gray color for 2.4G WIFI WLAN system
  • AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi NJ connector Gray color for 2.4G WIFI WLAN system

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXF-2400NJ-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Product Name: Omnidirectional Antenna Frequency: 2400~2483mhz
    Gain: 8dBi VSWR: ≤1.5
    Impedance: 50Ω Polarization: Vertical
    Connector Type: N Male Dimensions: Φ20*550
    Color: Gray

    AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi N male connector Gray color for 2.4G WIFI WLAN system​



    Feature:

    Exquisite appearance

    Good impact resistance,waterproofing and anticorrosion ability

    Full day working

    Optimized dimension

    High gain,low standing wave,strong anti-interference ability



    Application:

    2.4G/WIFI/WLAN/LTE system

    Point-to-multipoint system



    AMEISON manufacturer Fiberglass Omnidirectional Antenna 8dbi NJ connector Gray color for 2.4G WIFI WLAN system



    AMXF-2400NJ-8

    Electrical Specifications

    Frequency range(MHz) 2400~2483
    Bandwidth (MHz) 83
    Gain (dBi) 8
    Half-power beam width(°) H:360 V:12
    VSWR ≤1.5
    Input Impedance(Ω) 50
    Polarization Vertical
    Maximum input power(W) 100
    Lightning protection DC Ground
    Input connector type N Female or Requested
    Mechanical Specifications
    Dimensions (mm) Φ20*550
    Antenna weight(kg) 0.2
    Operating temperature(°c) -40~60
    Rated Wind Velocity(m/s) 60
    Radome color Gray
