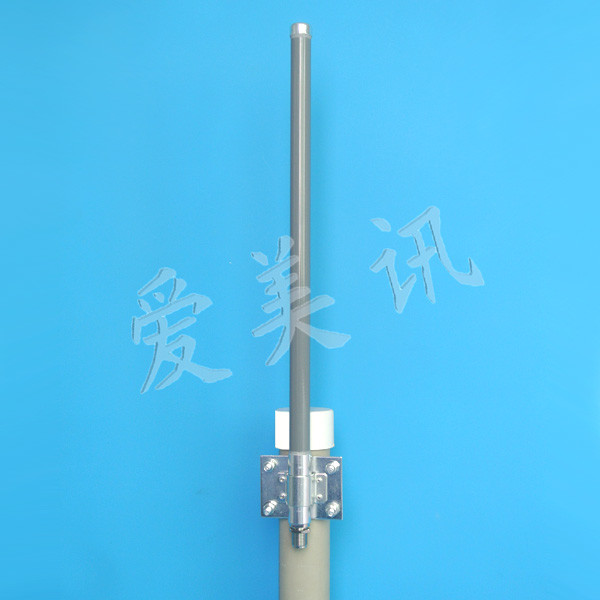

Outdoor 3G 1920-2170 MHz 8dBi Omni Directional Antenna with N female

Outdoor 3G 1920-2170 MHz 8dBi Omni Directional Antenna with N female

large.img.alt

Product Details:

Place of Origin: China
Brand Name: AMEISON
Certification: ISO 9001: 2008
Model Number: AMXF-1922-8

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: EXW Price
Packaging Details: PP bag /inner box/master carton or customized
Delivery Time: 10-20 working days
Payment Terms: TT,Paypal,Western Union
Supply Ability: 50,000 Pieces per Month
Contact Now
Detailed Product Description
Frequency Range(MHz): 1920-2170 Bandwidth(MHz): 250
Gain(dBi): 8 Half-power Beam Width(°): H:360 V:13
VSWR: ≤1.5 Polarization: Vertical
Lightning Protection: DC Ground Input Connector Type: N Female Or Requested
Mounting Way: Pole-holding

Outdoor 3G 1920-2170 MHz 8dBi Omni Directional Antenna with N female



Feature:

Exquisite appearance

Good impact resistance, waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain, low standing wave, strong anti-interference ability

Application:

3g system

Point-to-multipoint system

AMXF-1922-6

Electrical Specifications

Frequency range(MHz) 1920-2170
Bandwidth(MHz) 250
Gain(dBi) 8
Half-power beam width(°) H:360 V:13
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical, Linear
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ20*600
Antenna weight(kg) 0.30
Operating temperature(°c) -40~60
Rated Wind Velocity(m/s) 60
Radome color Gray or White or others
Radome Material Fiberglass
Waterproof Standard IP65/ IP67
Mounting way Wall/ Pole-holding
Mounting hardware(mm) ¢35 - ¢50
