| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXW-1727VH-9B |
| Minimum Order Quantity: | 100 |
|---|---|
| Packaging Details: | PP bag /inner box/master carton or others |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Product Name: | 4G LTE MIMO Antenna | Frequency Range（MHz）: | 700～2700 |
|---|---|---|---|
| Polarization: | Vertical And Horizontal | Gain（dBi）: | 9 |
| V.S.W.R.: | ≤1.5 | Input Connector Type: | 2-SMA / TS9 / CRC9 |

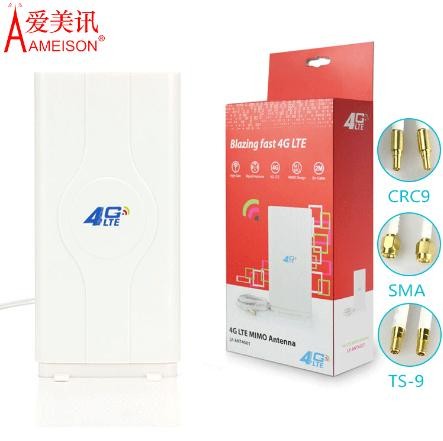

700-2700Mhz 2x18dBi 4G LTE MIMO Antenna Router Modem External panel antenna
Feature:
High gain
Full day working
Optimized dimension
Dual polarization
Application:
DCS,PCS,3G,4G LTE,WIFI system
Wireless communication and data transmission system
|
AMXW-7027VH-D9 Electrical Specifications |
|
| Frequency range(MHz) | 700-2700 |
| Polarization | Vertical and Horizontal |
| Gain(dBi) | 2×9 |
| Half-power beam width(°) | H:73 V:65 |
| Input Impedance(Ω) | 50 |
| VSWR | ≤1.5 |
| Maximum input power(W) | 200 |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | SMA / CRC9 / TS-9 |
| Cable length | 2 meters or request |
| Dimensions-mm (Height/Width/Depth) | 235*120*71 |
| Antenna weight (kg) | 0.28 |
| Radome material | ABS |
| Radome color | White |
| Operating temperature(°c) | -40～60 |
| Mounting Way | Desktop or wall mount |
