698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna

698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna

    • 698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna
    • 698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna
    • 698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna
    • 698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna
    • 698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna
    • 698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna
    • 698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna
    • 698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna
  • 698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXW-7027VS-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Product Name: Directional Panel MIMO Antenna Frequency: 698-2700mhz
    Gain: 8dBi VSWR: ≤1.5
    Impedance: 50Ω Polarization: Vertical And +/-45°
    Connector Type: N Female Dimensions: 260*170*60mm
    Color: White

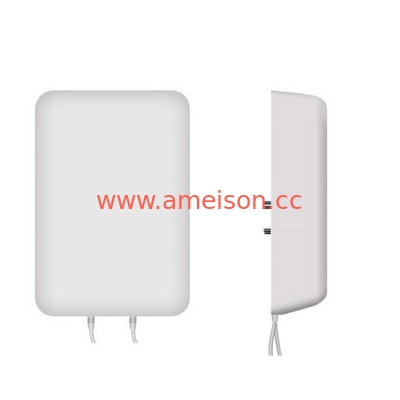

    698-2700MHz 8dbi Indoor or outdoor 3g 4g lte Directional Panel MIMO Antenna





    Feature:

    Exquisite appearance

    Suitable for ordinary ceiling mounting

    Optimized dimension

    Vertical and Horizontal



    Application:

    GSM/CDMA/PCS/3G/WLAN/4G/LTE system



    AMXW-7027VS-8

    Electrical Specifications

    Interface Vertical +45° -45°
    Frequency range(MHz) 698~960 1710~2690 1710~2690
    Gain(dBi) 4 7 7.5
    Half-power beam width(°) H:85 V:65 H:75 V:55
    VSWR ≤1.8 ≤1.5 ≤1.5
    Isolation between ports (dB) ≥25
    Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
    Input Impedance(Ω) 50
    Polarization Vertical and Horizontal
    Maximum input power(W) 50
    Lightning protection DC Ground
    Input connector type 2xN Female
    Mechanical Specifications
    Dimensions(mm) 260*170*60
    Antenna weight(kg) 0.72
    Operating temperature(°c) -40~60
    Radome material ABS
    Radome color white
    Mounting way pole-holding
    Mounting hardware(mm) ¢35~¢50
