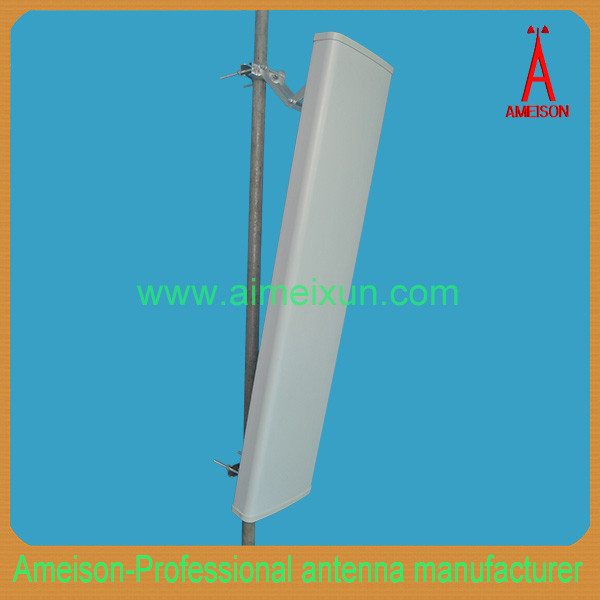

2400-2500MHz 2x14dBi Directional Panel Antenna 2.4ghz antenna wifi antenna

2400-2500MHz 2x14dBi Directional Panel Antenna 2.4ghz antenna wifi antenna

    • 2400-2500MHz 2x14dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
    • 2400-2500MHz 2x14dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
    • 2400-2500MHz 2x14dBi Directional Panel Antenna 2.4ghz antenna wifi antenna
  • 2400-2500MHz 2x14dBi Directional Panel Antenna 2.4ghz antenna wifi antenna

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXP-2425VH-D14L90

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: PP bag /inner box/master carton or customized
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Frequency Range(MHz): 2400~2500 Polarization: Vertical And Horizontal
    Gain(dBi): 2×14 VSWR: ≤1.5
    Maximum Input Power(W): 200 Lightning Protection: DC Ground
    Input Connector Type: 2-N Female
    High Light:

    wifi antenna

    ,

    wi fi antenna

    ,

    wi-fi antenna

    2400-2500MHz Directional Panel Antenna

    AMXP-2425VH-D14L90

    Feature:

    High gain

    Full day working

    Optimized dimension

    Vertical or horizontal

    Application:

    2.4 GHz WLAN system

    2.4 GHz ISM band

    Public wireless hot spot coverage

    Wi-Fi system

    AMXP-2425VH-D14L90

    Electrical Specifications

    Frequency range(MHz)

    2400~2500

    Polarization

    Vertical and Horizontal

    Gain(dBi)

    2×14

    Half-power beam width(°)

    H:90 V:14

    Front-to-back ratio(dB)

    ≥23

    Input Impedance(Ω)

    50

    VSWR

    ≤1.5

    Isolation between ports

    ≥28dB

    Cross-polar ratio

    ≥15dB@0º ≥10dB@+/-60º

    Sidelobe suppression for first sidelobe above horizon

    15 dB

    Maximum input power(W)

    200

    Lightning protection

    DC Ground

    Mechanical Specifications

    Input connector type

    2-N Female

    Dimensions-mm (Height/Width/Depth)

    500*175*80

    Packing size(mm)

    560*200*150

    Antenna weight (kg)

    4.3

    Radome material

    UPVC

    Radome color

    Gray

    Mechanical tilt(°)

    0~10

    Operating temperature(°c)

    -40~60

    Rated Wind Velocity(m/s)

    60

    Mounting hardware(mm)

    ¢35~¢75
