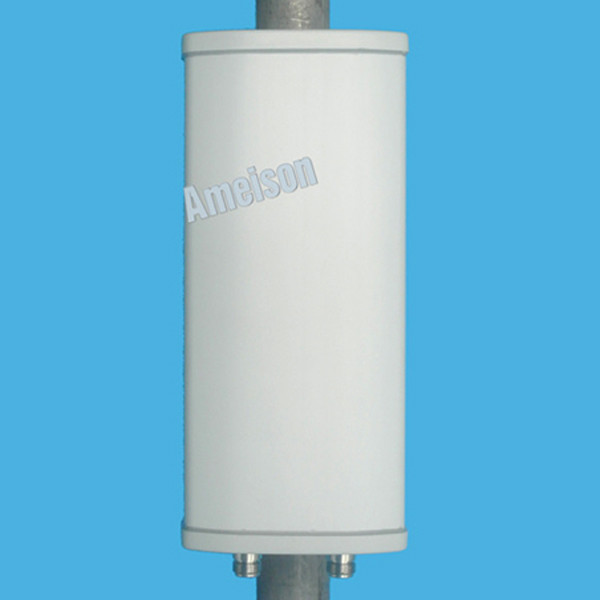

5100-5850MHz 13dBi Directional Panel Antenna wireless antenna WLAN antenna 120Degree Dual polarization

5100-5850MHz 13dBi Directional Panel Antenna wireless antenna WLAN antenna 120Degree Dual polarization

5100-5850MHz 13dBi Directional Panel Antenna wireless antenna WLAN antenna 120Degree Dual polarization

Product Details:

Place of Origin: China
Brand Name: AMEISON
Certification: ISO 9001: 2008
Model Number: AMXP-5158VH-D13L120

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: EXW Price
Packaging Details: bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Delivery Time: 10-20 working days
Payment Terms: TT,Paypal,Western Union
Supply Ability: 50,000 Pieces per Month
Contact Now
Detailed Product Description
Frequency Range(MHz): 5100~5850 Polarization: Vertical And Horizontal
Gain(dBi): 13 VSWR: ≤1.7
Maximum Input Power(W): 200 Lightning Protection: DC Ground
Input Connector Type: N Female

5100-5850MHz 13dBi Directional Panel Antenna wireless antenna WLAN antenna 120Degree Dual polarization



Feature:

High gain

Full day working

Optimized dimension

Dual polarization

Application:

5.1 GHz~5.8 GHz WLAN system

5.1 GHz~5.8 GHz ISM frequency band

Public wireless hot spot coverage



AMXP-5158VH-D13L120

Electrical Specifications

Frequency range(MHz) 5150~5850
Polarization Vertical and Horizontal
Gain(dBi) 2×13
Half-power beam width(°) H:120 V:14
Front-to-back ratio(dB) ≥23
Input Impedance(Ω) 50
VSWR ≤2
Isolation between ports ≥28dB
Cross-polar ratio ≥15dB@0º ≥10dB@+/-60º
Sidelobe suppression for first sidelobe above horizon 15 dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 300*114*54
Packing size(mm) 340*130*110
Antenna weight (kg) 2.2
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0~10
Operating temperature(°c) -40~60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ¢35~¢75
