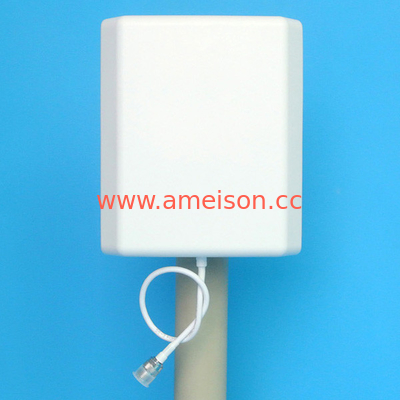

1700 - 2700 MHz 10dbi 4G LTE Directional indoor or outdoor Flat Panel Antenna

1700 - 2700 MHz 10dbi 4G LTE Directional indoor or outdoor Flat Panel Antenna

    • 1700 - 2700 MHz 10dbi 4G LTE Directional indoor or outdoor Flat Panel Antenna
    • 1700 - 2700 MHz 10dbi 4G LTE Directional indoor or outdoor Flat Panel Antenna
    • 1700 - 2700 MHz 10dbi 4G LTE Directional indoor or outdoor Flat Panel Antenna
  • 1700 - 2700 MHz 10dbi 4G LTE Directional indoor or outdoor Flat Panel Antenna

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXW-1727-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: PP bag /inner box/master carton or others
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Frequency Range(MHz): 1700-2700 Gain(dBi): 10
    Half-power Beam Width(°): H:60 V:45 VSWR: ≤1.5
    Polarization: Vertical Lightning Protection: DC Ground
    Input Connector Type: N Female Or Requested

    1700 - 2700 MHz 10dbi 4G LTE Directional indoor or outdoor Flat Panel Antenna





    Feature:

    High gain, strong anti-interference ability

    Good defense system

    Full day working

    Exquisite appearance

    Optimized dimension



    Application:

    Indoor coverage system

    3g / 4g/LTE/ Wi-Fi system



    AMXW-1727-10

    Electrical Specifications

    Frequency range(MHz) 1710~2700
    Bandwidth(MHz) 990
    Gain(dBi) 10
    Half-power beam width(°) H:60 V:45
    VSWR ≤1.5
    Input Impedance(Ω) 50
    Polarization Vertical
    Maximum input power(W) 50
    Lightning protection DC Ground
    Input connector type N Female or Requested
    Mechanical Specifications
    Dimensions-mm (Height/Width/Depth) 210*180*45
    Antenna weight(kg) 0.57
    Operating temperature(°c) -40~60
    Rated Wind Velocity(m/s) 60
    Radome material ABS
    Radome color white
    Waterproof Standard IP54/ IP65/ IP67
    Mounting way Wall-mounted/ Pole-holding
    Mounting hardware(mm) ¢35 - ¢50
