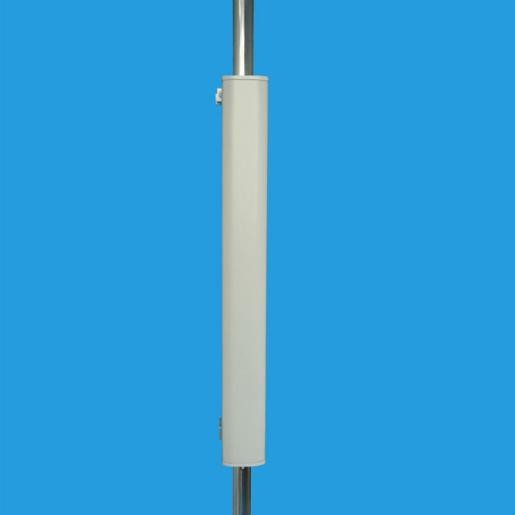

AMEISON 2400-5850MHz WIFI Directional Sector Panel Antenna 2.4ghz and 5.8ghz wlan 14dbi antenna

AMEISON 2400-5850MHz WIFI Directional Sector Panel Antenna 2.4ghz and 5.8ghz wlan 14dbi antenna

AMEISON 2400-5850MHz WIFI Directional Sector Panel Antenna 2.4ghz and 5.8ghz  wlan 14dbi antenna

Product Details:

Place of Origin: China
Brand Name: AMEISON
Certification: ISO 9001: 2008
Model Number: AMXP-2458VH-D14L90

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: EXW Price
Packaging Details: bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Delivery Time: 10-20 working days
Payment Terms: TT,Paypal,Western Union
Supply Ability: 50,000 Pieces per Month
Contact Now
Detailed Product Description
Frequency Range(MHz): 2400~2500 And 5725~5850 Polarization: Vertical And Horizontal
Gain(dBi): 14 And 14 Lightning Protection: DC Ground
Input Connector Type: 2×N Female

AMEISON 2400-5850MHz WIFI Directional Sector Panel Antenna 2.4ghz and 5.8ghz wlan 14dbi antenna​



Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal



Application:

2.4/5.8 GHz WLAN system

2.4/5.8 GHz ISM band

Wi-Fi system



AMXP-2458VH-D14L90

Electrical Specifications

Frequency range(MHz) 2400~2500 5725~5850
Polarization Vertical and horizontal
Gain(dBi) 14 14
Half-power beam width(0°) H:90 V:15 H:90 V:15
Front-to-back ratio(dB) ≥23 ≥23
Input Impedance(Ω) 50
Isolation between ports(dB) ≥28
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Sidelobe suppression for first sidelobe above horizon(dB) 15
VSWR ≤1.5 ≤1.5
Maximum input power(W) 200 100
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2×N Female
Dimensions-mm (Height/Width/Depth) 730*114*54
Packing size(mm) 780*130*110
Antenna weight(kg) 5
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0~10
Operating temperature(°c) -40~60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ¢35~¢90
