| Place of Origin: | China |
| Brand Name: | AMEISON |
| Certification: | ISO 9001: 2008 |
| Model Number: | AMXW-2458V2H2-D1518L60 |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | EXW Price |
| Packaging Details: | PP bag /inner box/master carton or customized |
| Delivery Time: | 10-20 working days |
| Payment Terms: | TT,Paypal,Western Union |
| Supply Ability: | 50,000 Pieces per Month |
| Frequency Range（MHz）: | 2400-2483/5750-5850 | Polarization: | Vertical And Horizontal |
|---|---|---|---|
| Gain（dBi）: | 15/18 | Half-power Beam Width（°）: | H:60 V:14/7 |
| Maximum Input Power（W）: | 100 | Lightning Protection: | DC Ground |
| Input Connector Type: | 4-N Female | Mounting Hardware（mm）: | ￠35～￠50 |

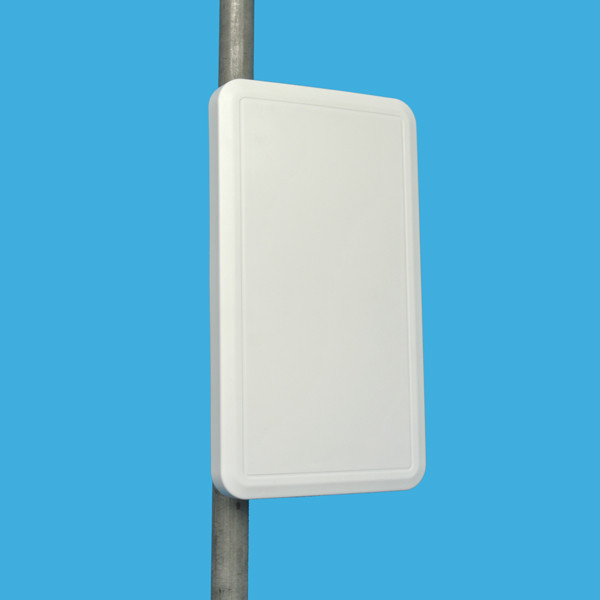

AMEISON 2.4ghz and 5.8ghz Mimo Directional flat Panel Antenna wireless antenna outdoor 4 x N female
Feature:
High gain
Full day working
Optimized dimension
Dual polarization
Application
2.4/5.8 GHz WLAN system
2.4/5.8 GHz ISM frequency band
Public wireless hot spot coverage
|
AMXW-2458V2H2-D1518L60 Electrical Specifications |
||
| Frequency range(MHz) | 2400～2500 | 5725～5850 |
| Polarization | Vertical and Horizontal | |
| Gain(dBi) | 15 | 18 |
| Half-power beam width(°) | H:60 V:14 | H:60 V:7 |
| Front-to-back ratio(dB) | ≥25 | |
| Input Impedance(Ω) | 50 | |
| VSWR | ≤1.5 | |
| Isolation between ports | ≥28dB | |
| Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º | |
| Sidelobe suppression for first sidelobe above horizon | 15 dB | |
| Maximum input power(W) | 100 | |
| Lightning protection | DC Ground | |
| Mechanical Specifications | ||
| Input connector type | 4-N Female | |
| Dimensions-mm (Height/Width/Depth) | 450*253*35 | |
| Antenna weight (kg) | 0.85 | |
| Radome material | ABS | |
| Radome color | White | |
| Mechanical tilt(°) | 0～10 | |
| Operating temperature(°c) | -40～60 | |
| Rated Wind Velocity(m/s) | 60 | |
| Mounting hardware(mm) | ￠30～￠50 | |
