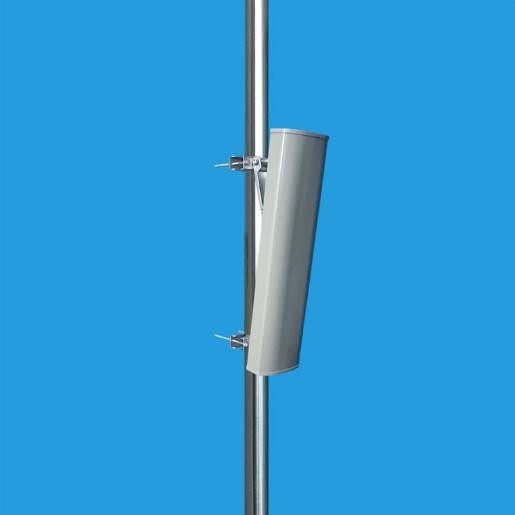

1710 - 2700 MHz Vertical polarized 15dbi Directional Base Station Sector Panel Antenna

1710 - 2700 MHz Vertical polarized 15dbi Directional Base Station Sector Panel Antenna

1710 - 2700 MHz Vertical polarized 15dbi Directional Base Station Sector Panel Antenna

Product Details:

Place of Origin: China
Brand Name: AMEISON
Certification: ISO 9001: 2008
Model Number: AMXP-1727V-D15L65

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: EXW Price
Packaging Details: bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Delivery Time: 10-20 working days
Payment Terms: TT,Paypal,Western Union
Supply Ability: 50,000 Pieces per Month
Contact Now
Detailed Product Description
Frequency Range: 1710~2700MHz Type: Sector Panel Antenna
Polarization: Vertical Gain(dBi): 15
Half-power Beam Width(°): H:65 V:14 Front-to-back Ratio(dB): ≥23
Input Impedance(Ω): 50 VSWR: ≤1.5
Maximum Input Power(W): 200 Lightning Protection: DC Ground
Input Connector Type: N Female

1710 - 2700 MHz Vertical polarized 15dbi Directional Base Station  Sector Panel Antenna





Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal



Application:

DCS, PCS, 3g, WLAN, 4g, LTE, Wi-Fi system

Wireless communication and data transmission system



AMXP-1727V-D15L65

Electrical Specifications

Frequency range(MHz) 1710~2700
Polarization Vertical
Gain(dBi) 15
Half-power beam width(°) H:65 V:14
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
V.S.W.R. ≤1.5
Sidelobe suppression for first sidelobe above horizon 15 dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type N-Female
Dimensions-mm (Height/Width/Depth) 660*175*80
Packing size(mm) 690*200*150
Antenna weight (kg) 4.5
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0~15
Operating temperature(°c) -40~60
Rated Wind Velocity(m/s) 60
Waterproof Standard IP67
Mounting way pole-holding
Mounting pole hardware(mm) ¢35 ~ ¢75
