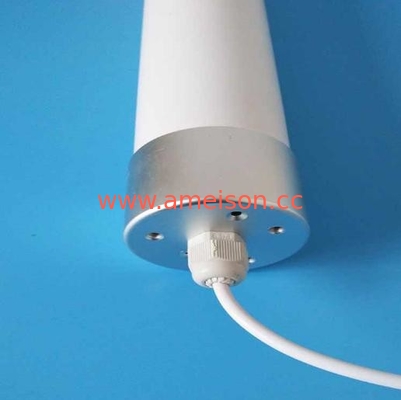

AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 800-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system

AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 800-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system

    • AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 800-2700mhz  for GSM/CDMA/PCS/3G/WLAN/LTE system
    • AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 800-2700mhz  for GSM/CDMA/PCS/3G/WLAN/LTE system
    • AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 800-2700mhz  for GSM/CDMA/PCS/3G/WLAN/LTE system
    • AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 800-2700mhz  for GSM/CDMA/PCS/3G/WLAN/LTE system
  • AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 800-2700mhz  for GSM/CDMA/PCS/3G/WLAN/LTE system

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXF-8027-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: PP bag /inner box/master carton or customized
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Product Name: Omnidirectional Antenna Frequency: 806~960/1710~2700mhz
    Gain: 8dBi VSWR: ≤1.5
    Impedance: 50Ω Polarization: Vertical
    Connector Type: N Female Dimensions: Φ60*750
    Color: White

    AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 800-2700mhz for GSM/CDMA/PCS/3G/WLAN/LTE system



    Feature :
    ●Exquisite appearance
    ●Good impact resistance,
    waterproofing and anticorrosion ability
    ●Full day working
    ●Optimized dimension
    ●low standing wave,strong anti-interference ability
    Application :
    ●CDMA/GSM/PCS/3G/4G/LTE/WLAN system
    ●Point-to-multipoint system



    AMEISON manufacturer Outdoor Omnidirectional Antenna 8dbi N female 800-2700mhz  for GSM/CDMA/PCS/3G/WLAN/LTE system



    AMXF-8027-8

    Electrical Specifications

    Frequency range(MHz) 806-960 / 1710-2700
    Bandwidth(MHz) 154 / 990
    Gain(dBi) 6/8
    Half-power beam width(°) H:360 V:25
    VSWR ≤2.0
    Input Impedance(Ω) 50
    Polarization Vertical
    Maximum input power(W) 100
    Lightning protection DC Ground
    Cable length (cm) 30
    Input connector type N female
    Mechanical Specifications
    Dimensions (mm) Φ60*750
    Antenna weight(kg) 0.6
    Cable length (cm) 30
    Operating temperature(°c) -40~60
    Rated Wind Velocity(m/s) 60
    Radome color White
    Mounting way Pole-holding
    Mounting hardware(mm) ¢35-¢50
