AMEISON manufacturer 698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE

AMEISON manufacturer 698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE

    • AMEISON manufacturer  698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE
    • AMEISON manufacturer  698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE
    • AMEISON manufacturer  698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE
    • AMEISON manufacturer  698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE
    • AMEISON manufacturer  698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE
  • AMEISON manufacturer  698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXF-7027-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: PP bag /inner box/master carton or customized
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Product Name: Omnidirectional Antenna Frequency: 700-2700 Mhz
    Gain: 5dBi VSWR: ≤1.5
    Impedance: 50Ω Polarization: Vertical
    Connector Type: N Female Dimensions: Φ60*230
    Color: White

    AMEISON manufacturer 698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE





    Feature :
    Exquisite appearance
    Good impact resistance,waterproofing and anticorrosion ability
    Full day working
    Optimized dimension
    High gain,low standing wave,strong anti-interference ability


    Application :
    CDMA/GSM/PCS/2G/3G/4G/LTE/WIFI/WLAN system

    Point-to-multipoint system



    AMEISON manufacturer  698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE



    698-2700MHz Omnidirectional Antenna

    AMXF-7027-5

    Electrical Specifications

    Frequency range(MHz) 698-960 / 1710-2700
    Bandwidth(MHz) 262 / 790
    Gain(dBi) 3 / 5
    Half-power beam width(°) H:360 V:55
    VSWR ≤2.0
    Input Impedance(Ω) 50
    Polarization Vertical
    Maximum input power(W) 100
    Lightning protection DC Ground
    Cable length (cm) 30
    Input connector type N female or Requested
    Mechanical Specifications
    Dimensions (mm) Φ60*230
    Antenna weight(kg) 0.6
    Operating temperature(°c) -40~60
    Rated Wind Velocity(m/s) 60
    Radome color White
    Mounting way Pole-holding
    Mounting hardware(mm) ¢35-¢50

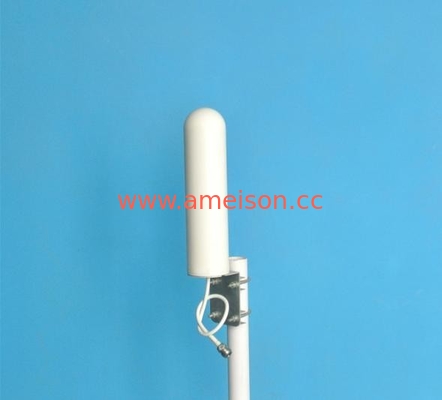

    Install as the picture below



    AMEISON manufacturer  698-2700MHz Outdoor Omni directional Antenna 5dbi N female supports full band 2G 3G 4G LTE
