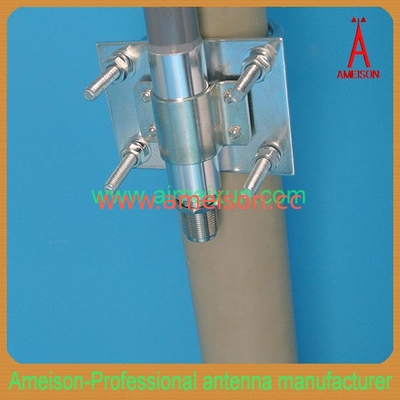

2.4GHz 10dbi omnidirectional fiberglass antenna wifi antenna WLAN antenna

2.4GHz 10dbi omnidirectional fiberglass antenna wifi antenna WLAN antenna

    • 2.4GHz 10dbi omnidirectional fiberglass antenna wifi antenna WLAN antenna
    • 2.4GHz 10dbi omnidirectional fiberglass antenna wifi antenna WLAN antenna
    • 2.4GHz 10dbi omnidirectional fiberglass antenna wifi antenna WLAN antenna
  • 2.4GHz 10dbi omnidirectional fiberglass antenna wifi antenna WLAN antenna

    Product Details:

    Place of Origin: China
    Brand Name: AMEISON
    Certification: ISO 9001: 2008
    Model Number: AMXF-2400-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: EXW Price
    Packaging Details: PP bag /inner box/master carton or customized
    Delivery Time: 10-20 working days
    Payment Terms: TT,Paypal,Western Union
    Supply Ability: 50,000 Pieces per Month
    Contact Now
    Detailed Product Description
    Frequency Range(MHz): 2400~2483 Bandwidth(MHz): 83
    Gain(dBi): 10 VSWR: ≤1.5
    Polarization: Vertical Lightning Protection: DC Ground
    Input Connector Type: N Female Or Requested Mounting Way: Pole-holding
    High Light:

    Omnidirectional antenna

    ,

    2.4g fiberglass antenna

    ,

    omnidirectional fiberglass antenna

    2.4 GHz WLAN system

    Wi-Fi system

    Point to multipoint

    High gain, low VSWR ,Anti-distraction

    Optimized size

    2400-2483MHz Omnidirectional Fiberglass Antenna

    AMXF-2400-10

    Feature:

    Exquisite appearance

    Good impact resistance,waterproofing and anticorrosion ability

    Full day working

    Optimized dimension

    High gain,low standing wave,strong anti-interference ability

    Application:

    2.4GHz WLAN system

    WiFi system

    Point-to-multipoint system

    AMXF-2400-10

    Electrical Specifications

    Frequency range(MHz)

    2400~2483

    Bandwidth(MHz)

    83

    Gain(dBi)

    10

    Half-power beam width(°)

    H:360 V:9

    VSWR

    ≤1.5

    Input Impedance(Ω)

    50

    Polarization

    Vertical

    Maximum input power(W)

    100

    Lightning protection

    DC Ground

    Input connector type

    N Female or Requested

    Mechanical Specifications

    Dimensions (mm)

    Φ20*760

    Antenna weight(kg)

    0.45

    Operating temperature(°c)

    -40~60

    Rated Wind Velocity(m/s)

    60

    Radome color

    Gray

    Mounting way

    Pole-holding

    Mounting hardware(mm)

    ¢35-¢50
